app_drag

This tool on every surface: CLI · MCP · Python · JavaScript · Go · Java · .NET

Drag and drop: press something, hold until it is picked up, carry it, and release. Not app_swipe with different names — a swipe has no hold at either end, so it flings the list instead of moving the item in it. Give from and to as refs or locators, both resolved from one snapshot before anything is touched, or all four of x1, y1, x2, y2. It reports that the gesture was delivered and where it went; whether the drop was accepted is the app's own state, so call app_map again to see it. Discards the refs from the last app_map.

Changes the device, the app or the session: readOnlyHint is false.

Arguments

Name	Type	Required	What it is
device	string		Device serial to target, e.g. "emulator-5554". Omit when only one device is running.
driver	string: uiautomator2, uiautomator, wda		Driver to use: "uiautomator2" (default for Android; fast, installs a server APK on first use), "uiautomator" (Android, installs nothing, slower, cannot type), or "wda" (WebDriverAgent: iOS simulators and iPhones).
duration_ms	integer		How long the travel takes, in milliseconds. Defaults to 800.
from	string		A ref or locator for the thing being dragged.
hold_ms	integer		How long to hold at each end, in milliseconds. Defaults to 700, above Android's 500ms long-press timeout because that is what a drag-to-reorder list arms on. Raise it first when a drag picks nothing up.
to	string		A ref or locator for where it is going. Given together with from.
x1	integer		Start X in device pixels. Use all four, instead of from/to.
x2	integer		End X in device pixels.
y1	integer		Start Y in device pixels.
y2	integer		End Y in device pixels.

Examples

Each is the arguments of a tools/call request; the first is shown whole.

Drag one element onto another

{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "tools/call",
  "params": {
    "name": "app_drag",
    "arguments": {
      "from": "@e3",
      "to": "@e7"
    }
  }
}

On a device

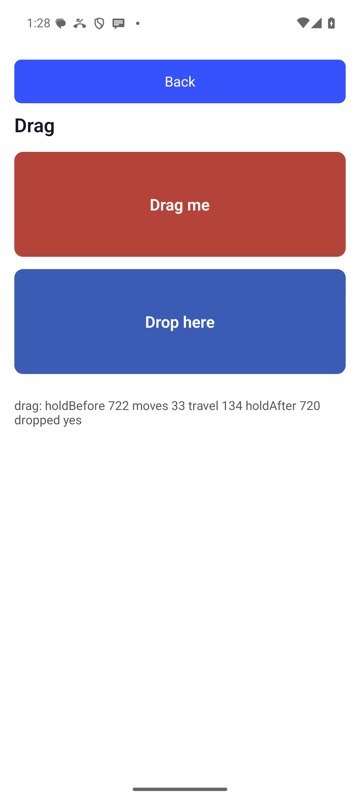

Before	After

mobium drag 'label=Drag source' 'label=Drop zone' on an Android 15 emulator
